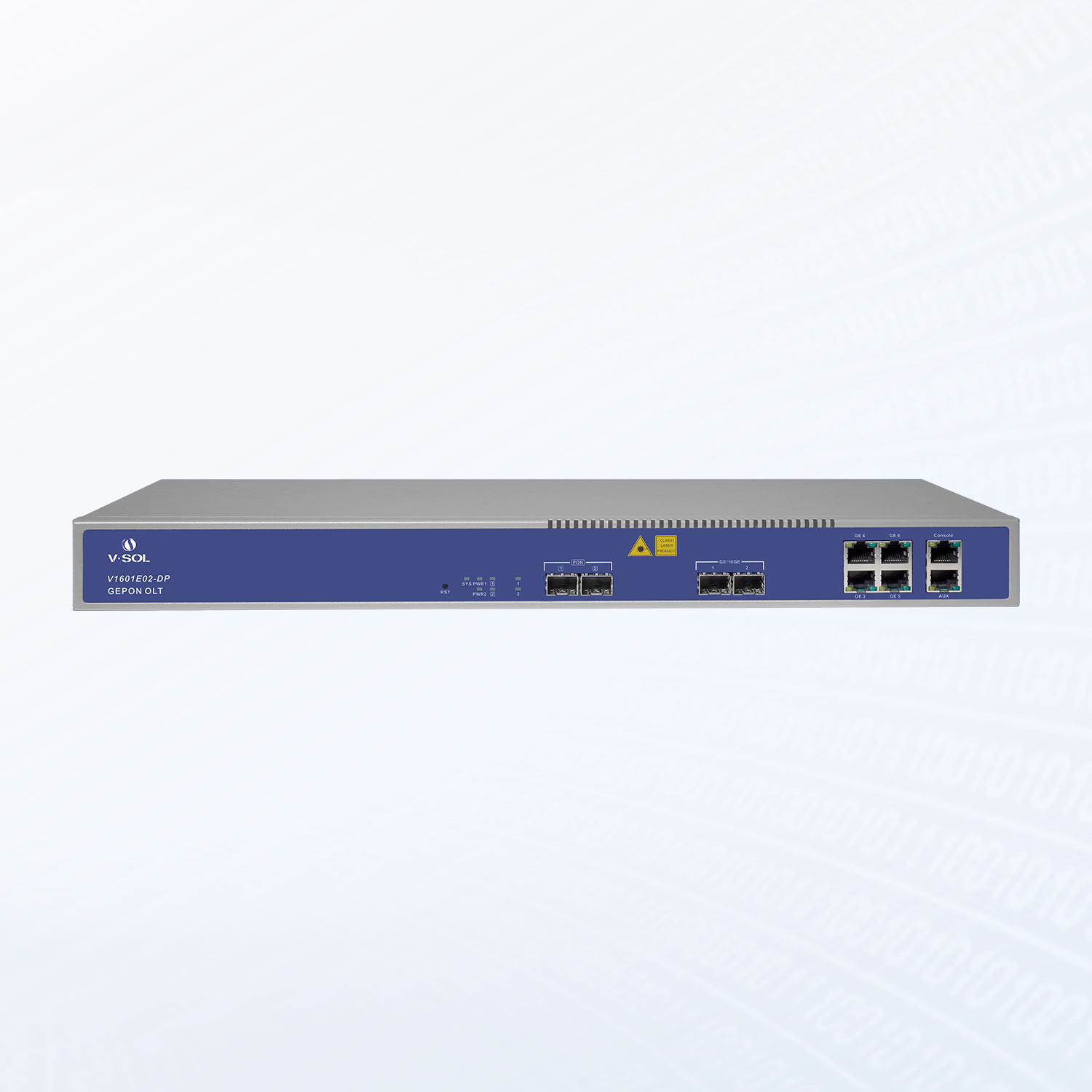

V-SOL 2PON EPON OLT V1601E02 + 2x SFP PX20++++
Rp4.392.437
Model: V1601E02
Spec: 2*EPON, 4*RJ45+2*SFP/(SFP+)
Deskripsi
| Model | V1601E02-DP |
| Uplink Port | QTY : 6 |
| RJ45(1G) : 4 | |
| SFP(1G)/SFP+(10G) : 2 | |
| EPON Port | QTY : 2 |
| Physical Interface : SFP Slots | |
| Supported PON module level : PX20, PX20+, PX20++, PX20+++,PX20++++ |
|
| Max splitting ratio : 1:64 | |
| Management Port | 1*10/100 BASE-T out-band port, 1*CONSOLE port |
| Backplane Bandwidth (Gbps) | 128 |
| Port Forwarding Rate(Mpps) | 38.688 |
| PON Port Specification | Transmission Distance : 20KM |
| EPON port speed”Symmetrical 1.25Gbps | |
| Wavelength TX 1490nm RX 1310nm |
|
| Connector : SC/UPC | |
| Fiber Type : 9/125μm SMF | |
| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V |
| Management Mode | SNMP/Telnet/CLI/WEB/SSH v2 |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 442 x 200 x 43.6 mm |
